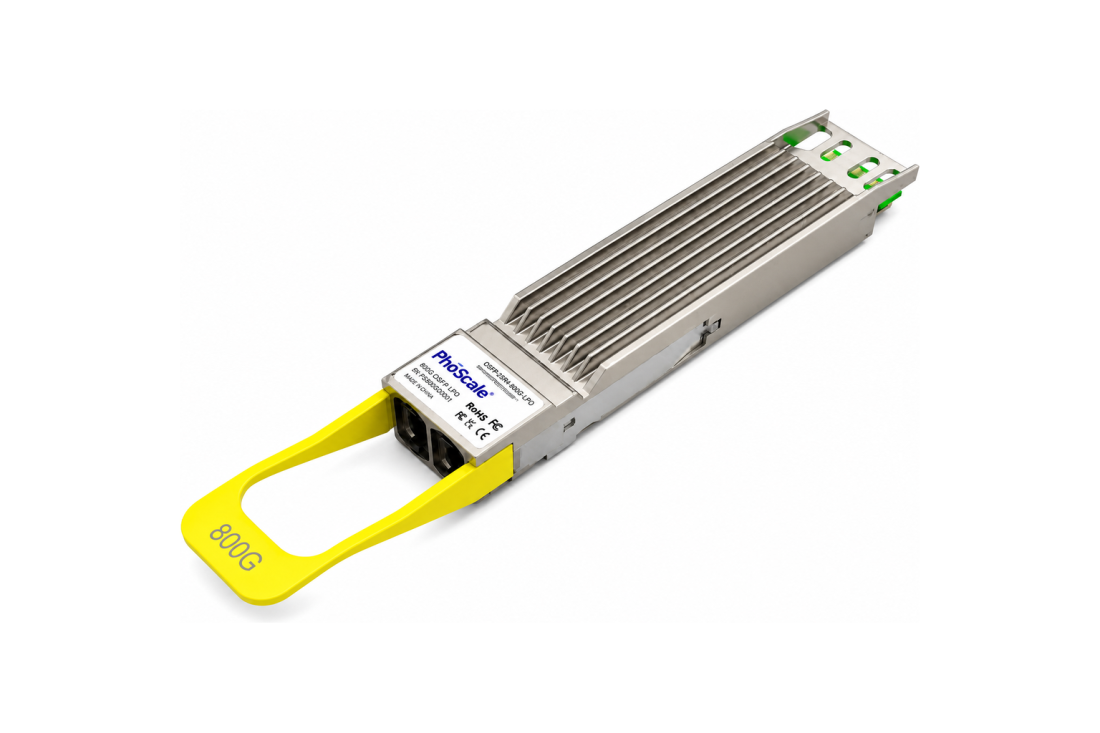

800G OSFP112 DR8 LPO IHS(Finned-top)
800G Optical Transceiver

800G OSFP112 DR8 LPO IHS(Finned-top)

SKU / P/N: PHOS-8OFSD85M16L

800G DR8 optical transceiver for AI data center, GPU cluster, reseller and system-integrator projects.

Data Rate
8x106.25Gbps
Form Factor
Dual-port OSFP IHS(Closed-top)
Standard
DR8
Reach
500m @ SMF
Connector
Dual MPO-12/APC
Max Power
9W
Spot Available Lead time: 2–4 weeks
Bulk package:
Custom Quote
Custom bulk order? Beyond 2000 pcs, mixed models or annual supply — use Custom Quote to negotiate your discount offline.

Bulk availability changes frequently. Discounts shown are indicative volume tiers — submit an RFQ to confirm the latest price, lead time and allocation. Prices are provided by quote — no public list price.

Link-up guaranteedCoded to any switch / NIC platform
Lifetime warrantyAdvance replacement
Ships from US warehouseFast, no import hassle
Per-unit testedTest report + power-on video

Product description

800GBASE-DR8 LPO (Linear-drive Pluggable Optics) OSFP PAM4 optical transceiver — single-mode fiber, 1310 nm, 500 m, dual MTP/MPO-12 APC, DOM, IHS/finned-top.

Designed for 800GBASE Ethernet, this module supports links of up to 500 m over OS2 single-mode fiber at 1310 nm through dual MTP/MPO-12 APC connectors. It complies with CMIS 5.1, LPO MSA 1.0 and the OSFP MSA, and built-in digital diagnostics monitoring (DDM) provides real-time access to operating parameters.

The LPO transceiver uses a linear architecture — a linear driver on the TX side and a TIA on the RX side — omitting the traditional DSP/CDR ASIC to simplify the signal path and reduce both power consumption and latency, while tolerating a wide range of operating conditions including temperature, humidity and EMI.

Retaining a pluggable design for flexible cabling and maintenance, it employs a silicon photonics PIC for compact, high-speed, ultra-reliable connectivity. The 800G LPO transceiver excels in AI/ML systems and 800G switches that support linear-drive optics.

Product highlights

  • Linear-drive Pluggable Optics (LPO) — DSP-less design for the lowest latency and power
  • Silicon-photonics (SiPh) based design for lower power, lower cost and higher density
  • Optimized power budget, max power consumption 9W
  • Compliant with OSFP MSA 5.0 and IEEE802.3ck and IEEE 802.3df standards
  • Supports breakout to lower-rate links for flexible fabric design
  • Tested on live switch / NIC platforms to ensure performance, quality and reliability

Applications

  • AI data center & GPU cluster interconnect
  • Spine-leaf switching fabric
  • 800G to breakout links in high-density fabrics
  • Hyperscale, cloud and high-performance computing networks

Supply status meaning

In stock or short-notice availability

Data Rate8x106.25Gbps
Max Data Rate8x106.25Gbps
Form FactorDual-port OSFP IHS(Closed-top)
StandardDR8
Lanes8
Rate per Lane106.25Gbps PAM4
Reach500m@SMF
MediaSMF
Fiber Typesingle-mode fiber (SMF)
ConnectorDual MPO-12/APC
Connector PolishAPC
Wavelength1311nm
Max Power9W
Operating Temperature0 to 70C (32 to 158F)
Optical Modulation8x100G-PAM4
Electrical Modulation8x100G-PAM4
FECInbuilt FEC: Yes
IEEE ComplianceIEEE802.3ck 和 IEEE 802.3df
MSA ComplianceOSFP MSA 5.0
ProtocolsInfiniBand XDR,OSFP MSA 5.0,IEEE802.3ck 和 IEEE 802.3df,CMIS5.1
Host InterfaceDual-port OSFP /800G
Thermal / ShellIHS(Closed-top)
Warranty5

Four bulk tiers — the larger the volume, the better the discount. Actual pricing is confirmed by RFQ based on quantity, customer tier and lead time; there is no single-unit retail.

PackageQuantityVolume discountBest for
Starter Pack 100 pcs Base bulk price Trial order / small channel Request Quote
Growth Pack 500 pcs Save ~5% vs. Starter Reseller / regular supply Request Quote
Project Pack Popular 1000 pcs Save ~10% vs. Starter AI data center project Request Quote
Strategic Pack 2000 pcs Save ~15% vs. Starter Annual / channel agreement Request Quote
Custom bulk order 2000+ pcs Negotiated offline Annual / strategic supply Contact Sales

Ask a compatibility question

Need this model to match a specific switch, NIC or OEM coding? Send us the platform and we'll confirm compatibility and coding options.

  • Compatible coding for major switch / NIC platforms on request
  • Alternative model recommendations
  • Breakout and cabling guidance

Supply & compliance FAQ

How do the proposed FCC rules on optical transceivers affect availability?

The FCC rulemaking reported in August 2026 is still a draft. As reported, it would apply to new model authorizations, while models already deployed and shipping would continue to be supplied. Current PhoScale shipments are unaffected, and we hold inventory in our US warehouse. We track the rulemaking closely and publish updates on our Insights page.

Can you provide compliance documentation for your transceivers?

Yes. Every SKU ships with per-unit test reports, and compliance documentation (FCC, FDA laser, RoHS) is available on request as part of our ongoing compliance program.

How do you protect buyers against supply-chain disruption?

Three ways: US-warehouse stock for immediate needs, multi-source manufacturing across tier-one Asian production partners, and allocation planning for project and annual-supply customers. See our Supply Assurance page for details.

What lead times should we plan for on 800G and 1.6T optics?

In-stock models ship from our US warehouse immediately. For volume orders, typical lead times are 2–6 weeks depending on model and quantity — submit an RFQ for a confirmed date against current allocation.
